TrolMaster TS-1 Thermostat Station for Cool-Only HVAC Systems
-
-
-
-
The TrolMaster TS-1 Thermostat Station is designed to replace a conventional wall thermostat used with compatible cool-only commercial HVAC systems.

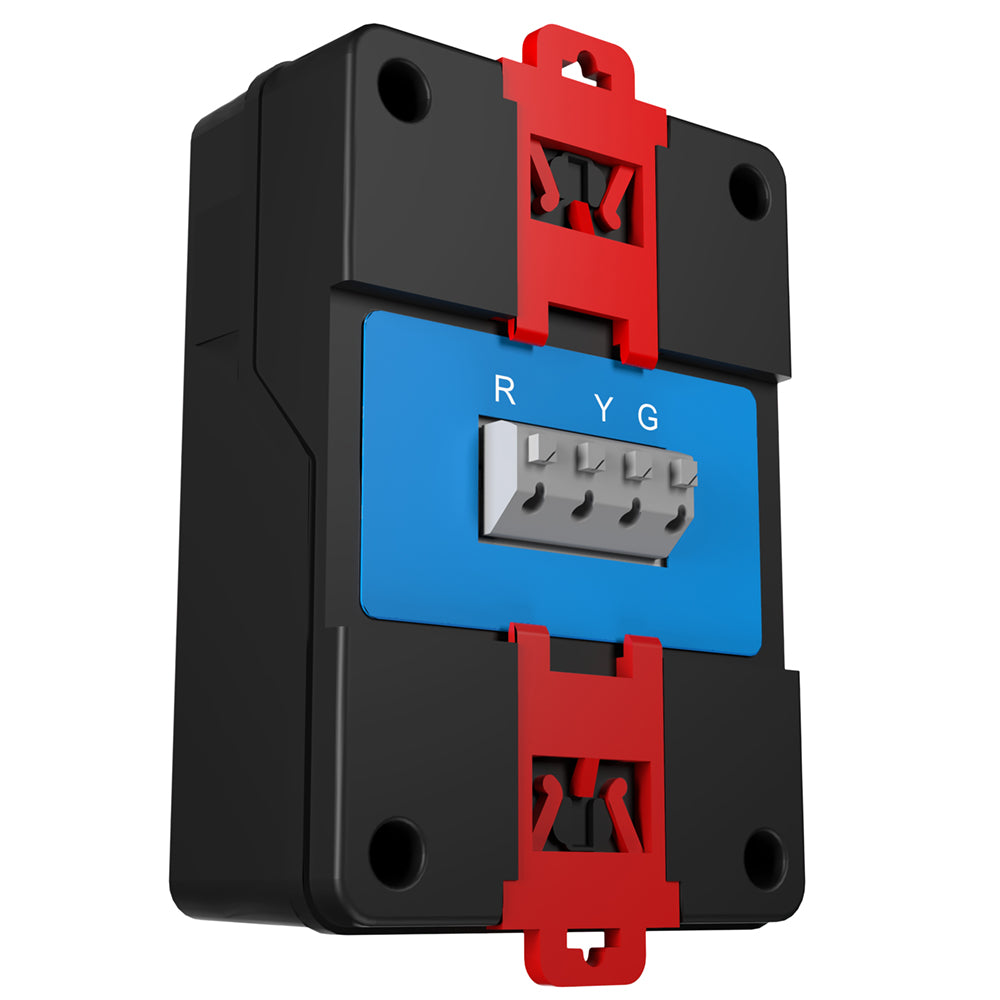

Connected to the HVAC system through standard low-voltage thermostat wiring, the TS-1 allows a TrolMaster Hydro-X controller to automatically control cooling according to programmed Day and Night temperature setpoints.

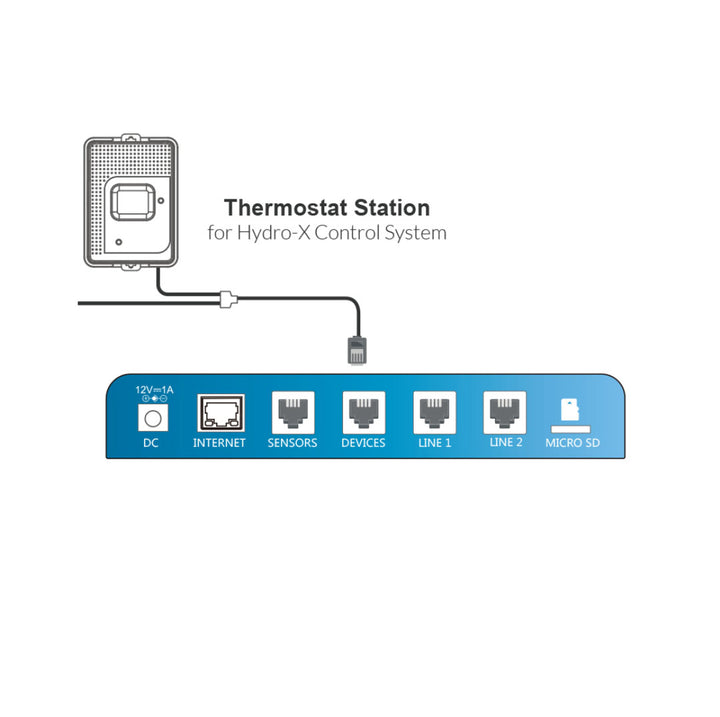

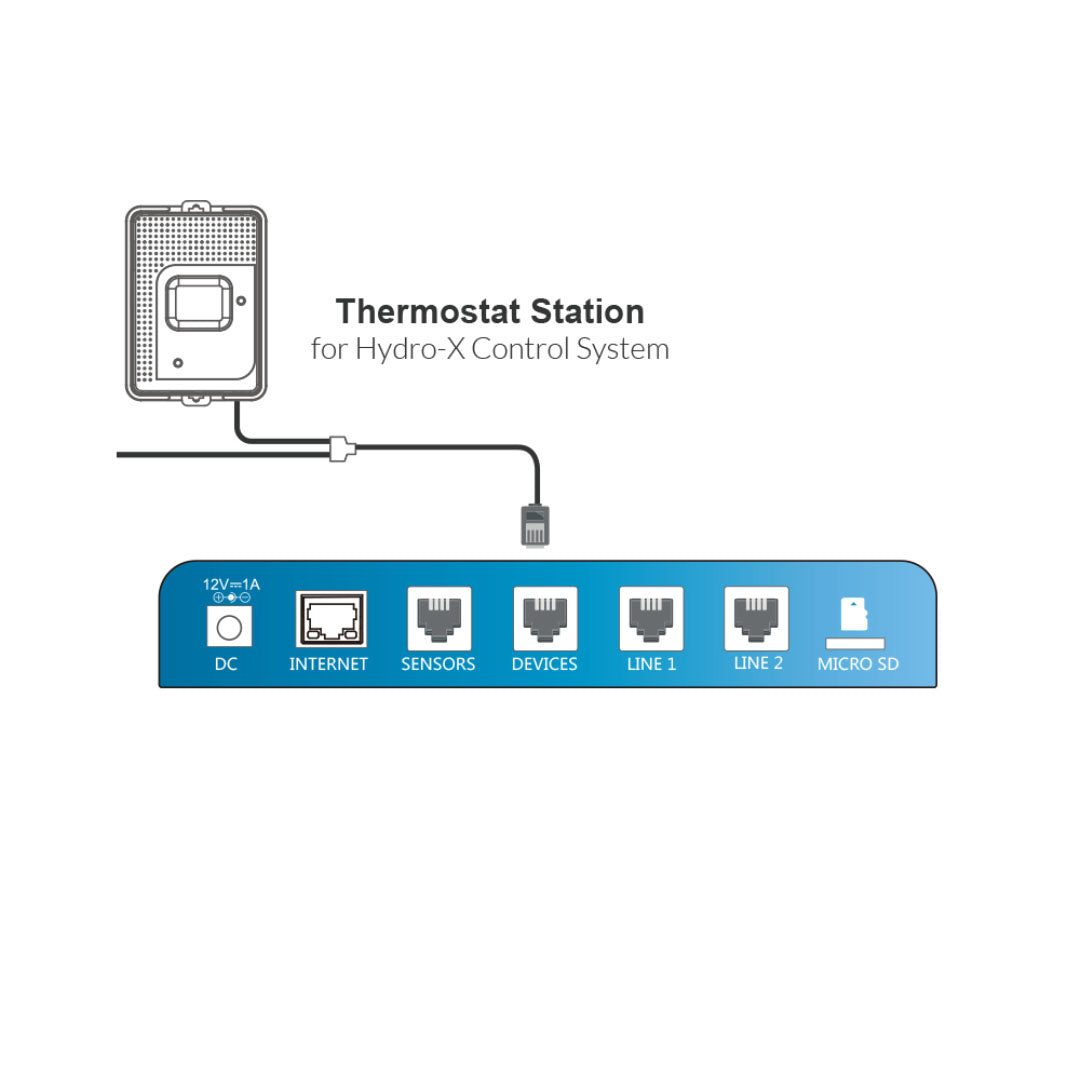

The TS-1 connects directly to the Hydro-X using RJ12 cabling and does not require a separate external power supply. Once connected and addressed, the Hydro-X sends control commands directly to the thermostat station.

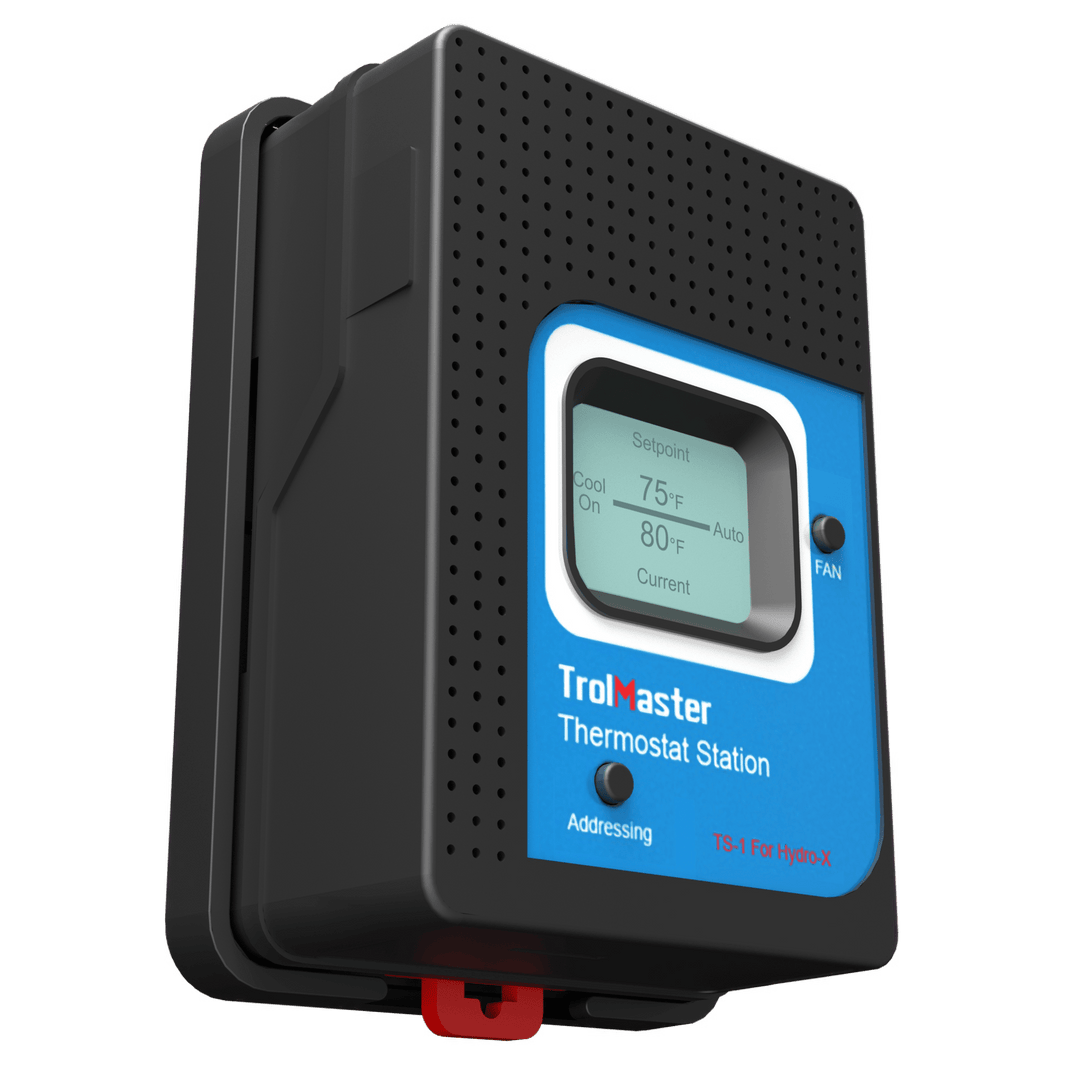

Its built-in LCD screen displays the programmed temperature setpoint and the current temperature. When the room temperature rises above the selected setpoint, the TS-1 automatically activates cooling.
The TS-1 also provides ON and AUTO fan control, allowing the HVAC fan to operate continuously or only when cooling is active.
A single Hydro-X system can control up to four TS thermostat modules, allowing multiple compatible HVAC systems to be managed independently from one environmental controller.
Important: The TS-1 is specifically designed for cool-only commercial air-conditioning systems. Verify the HVAC wiring and system type before installation.
