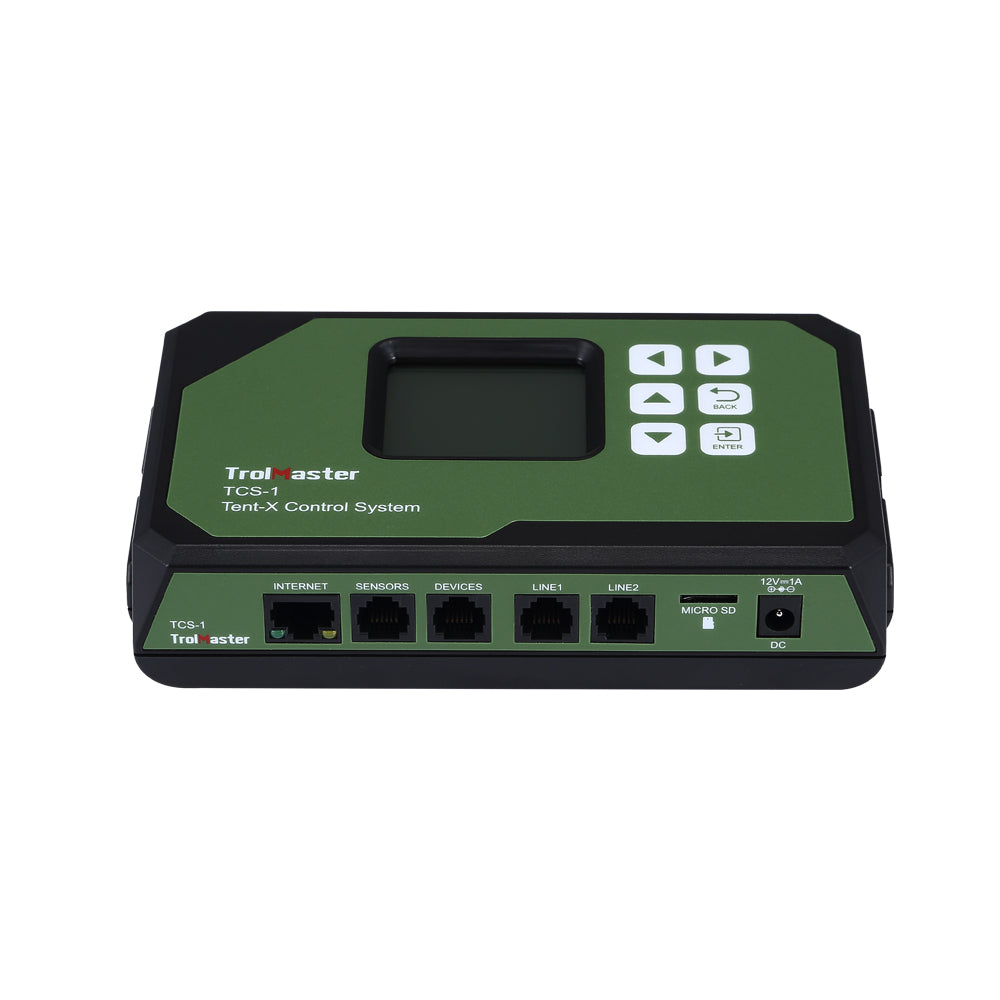

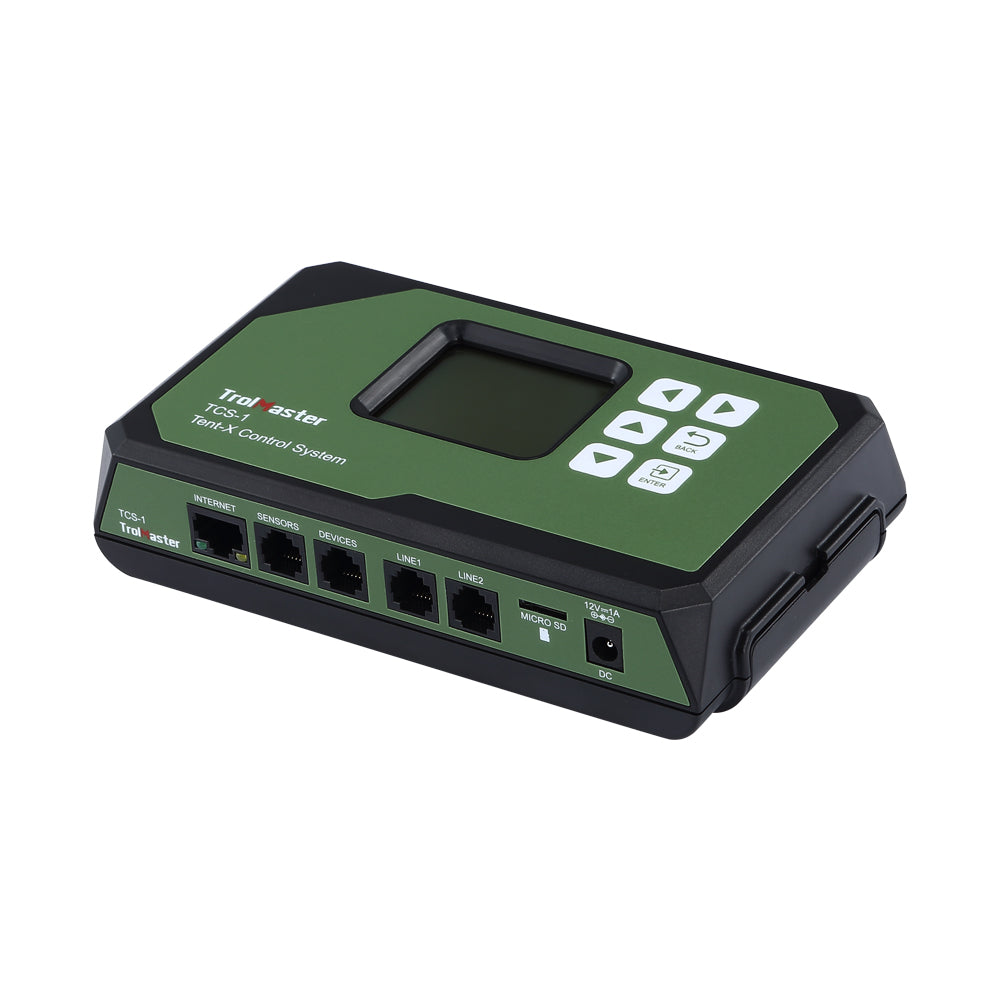

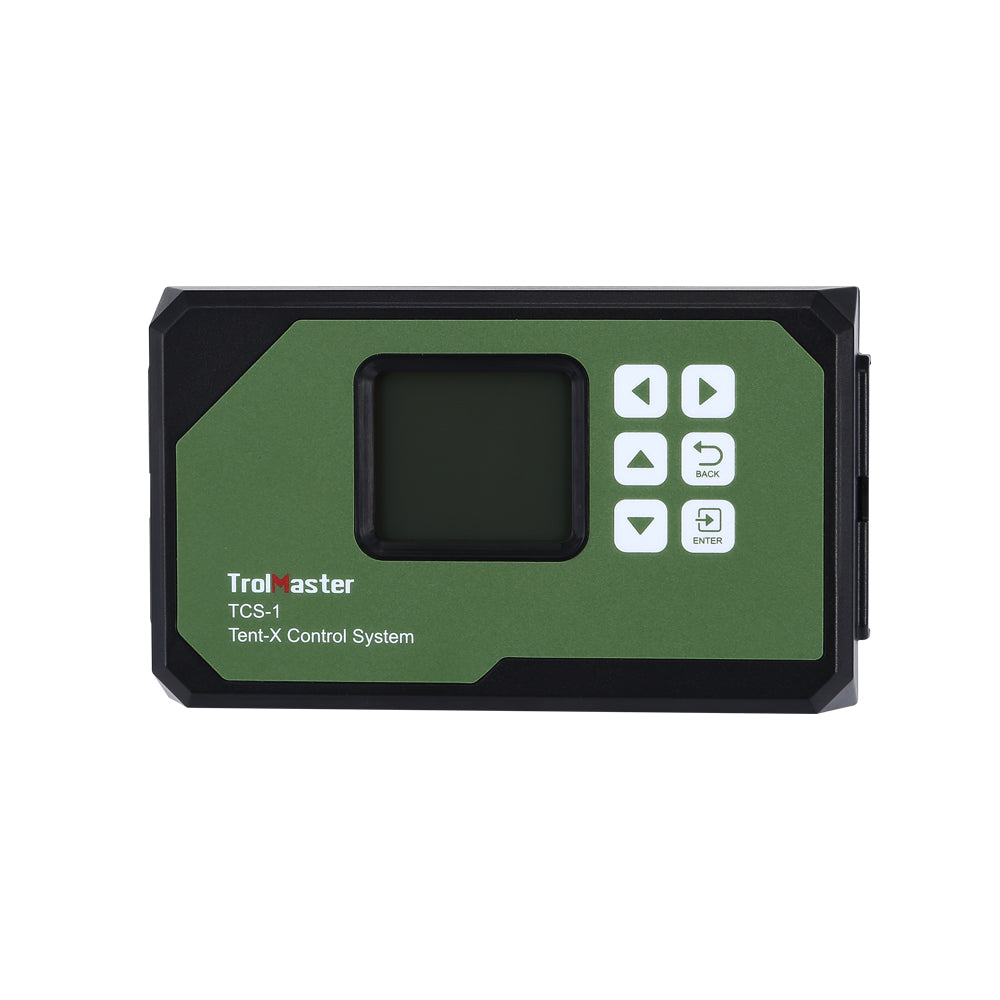

TrolMaster Tent-X TCS-1 Grow Room Controller

• Single-Zone Environmental Control – Designed specifically for grow tents and single-zone indoor growing environments
• Temperature, Humidity & CO₂ Control – Automate compatible environmental equipment using sensor readings and programmed setpoints
• Integrated Irrigation Control – Control pumps and valves using programmable irrigation schedules
• Advanced Lighting Control – Two lighting channels for compatible grow lights and lighting adapters
• 3-in-1 Sensor Included – Includes the MBS-TH temperature, humidity and light sensor
• Expandable Sensor Platform – Compatible with optional CO₂, PAR, smoke, water, substrate and nutrient monitoring sensors
• Programmable Irrigation Schedules – Supports single schedules, multiple schedules and recycle timer functions
• Remote Monitoring & Control – Monitor and manage compatible system functions remotely through the TrolMaster platform
• Data Logging – Track environmental and system data for improved grow room management

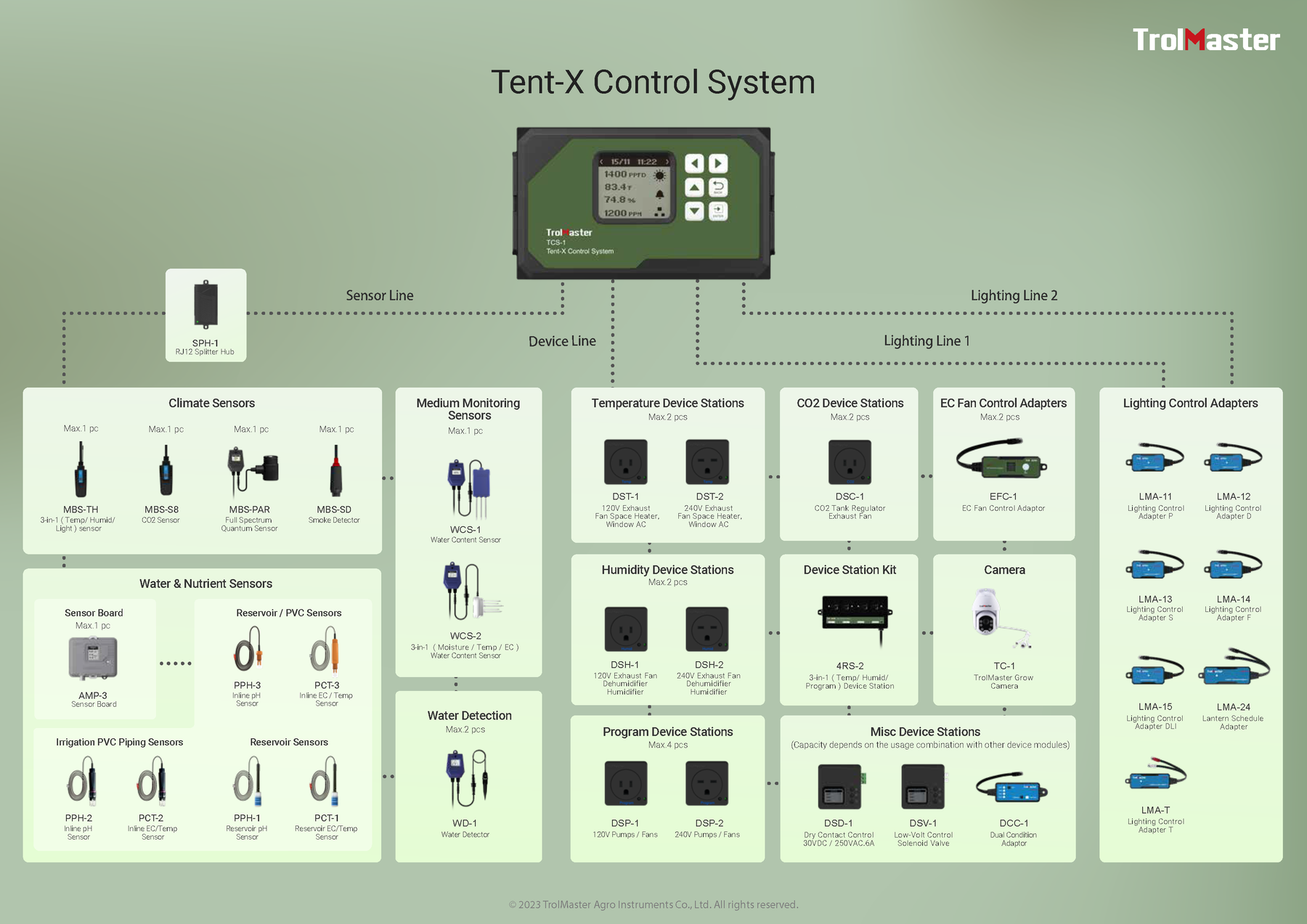

• Modular & Expandable Design – Add compatible sensors and control modules according to your cultivation needs

• Model: TCS-1
• Product Series: Tent-X
• Controller Type: Environmental & Irrigation Control System
• Application: Single-Zone Grow Tent / Indoor Grow Room
• Input Voltage: 100–240VAC, 50/60Hz
• Display: Backlit 128 × 128 LCD
• Included Climate Sensor: MBS-TH 3-in-1 Temperature / Humidity / Light Sensor
• Temperature Range: 32°F–122°F (0–50°C)
• Operating Humidity: ≤90%
• Lighting Channels: 2
• Maximum Lighting Fixtures: Up to 256 fixtures per lighting line
• Temperature Device Stations: Up to 2
• Humidity Device Stations: Up to 2
• CO₂ Device Stations: Up to 2
• Program / Timer Device Stations: Up to 4
• EC Fan Control Adapters: Up to 2
• CO₂ Sensor: Up to 1

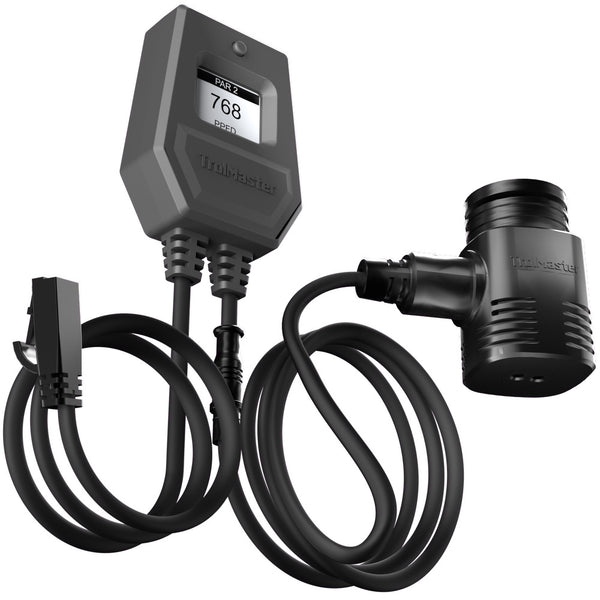

• Full Spectrum Quantum / PAR Sensor: Up to 1
• Smoke Detector: Up to 1

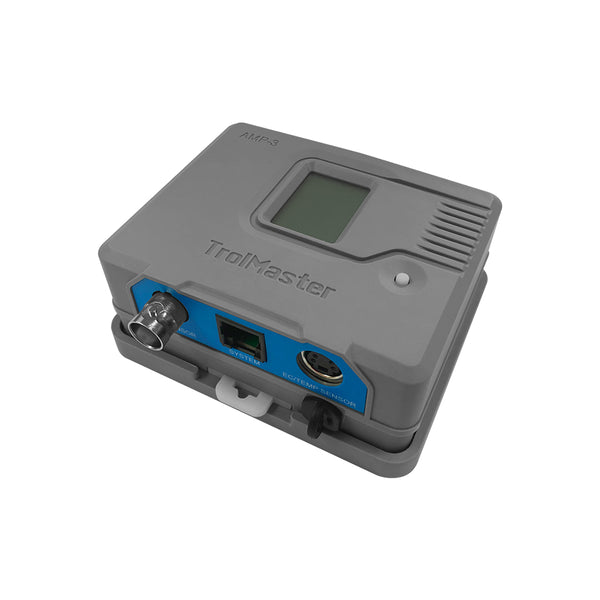

• AMP-3 pH / EC / Temperature Sensor Board: Up to 1

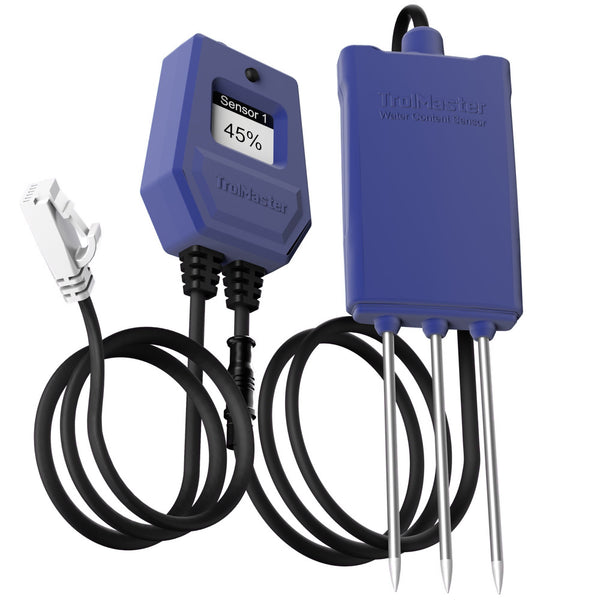

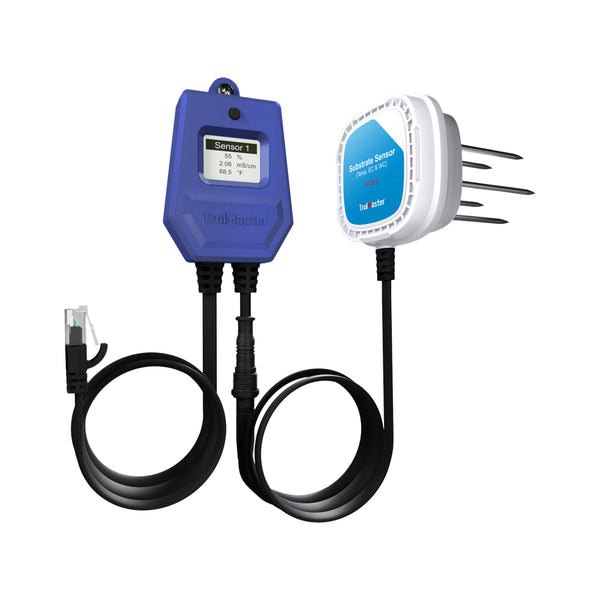

• Water Content Sensor: Up to 1

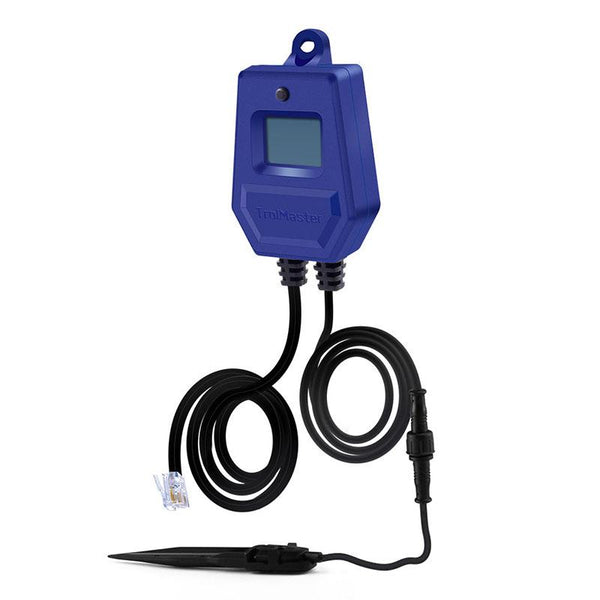

• Water Detectors: Up to 2
• Data Storage: MicroSD
• Remote Monitoring: TrolMaster App / Network Connectivity
• Controller Dimensions: 6.52 × 3.78 × 1.63 in
• Controller Weight: 0.54 lb

TrolMaster Tent-X TCS-1 Tech Sheet

TrolMaster Tent-X TCS-1 User Manual

TrolMaster Tent-X TCS-1 Firmware Update

What can the TrolMaster Tent-X TCS-1 control?

The TCS-1 can manage compatible temperature, humidity, CO₂, lighting, ventilation and irrigation equipment using TrolMaster sensors and control modules. It combines environmental and irrigation automation within one centralized controller.

Is the Tent-X TCS-1 designed for multiple grow rooms?

The Tent-X is primarily designed for single-zone grow tents and grow rooms. Growers requiring more extensive multi-zone environmental control should consider TrolMaster's larger Hydro-X platforms.

Does the TCS-1 include a temperature and humidity sensor?

Yes. The Tent-X includes the MBS-TH 3-in-1 sensor, which monitors temperature, humidity and light conditions.

Can the Tent-X control irrigation?

Yes. Compatible pumps and valves can be assigned to program control modules, allowing growers to create single irrigation schedules, multiple schedules and recycle-timer programs.

Can I add CO₂ monitoring to the Tent-X?

Yes. The Tent-X supports a compatible TrolMaster CO₂ sensor and CO₂ device stations, allowing CO₂ monitoring and automated control of compatible CO₂ equipment.

Can the Tent-X control grow lights?

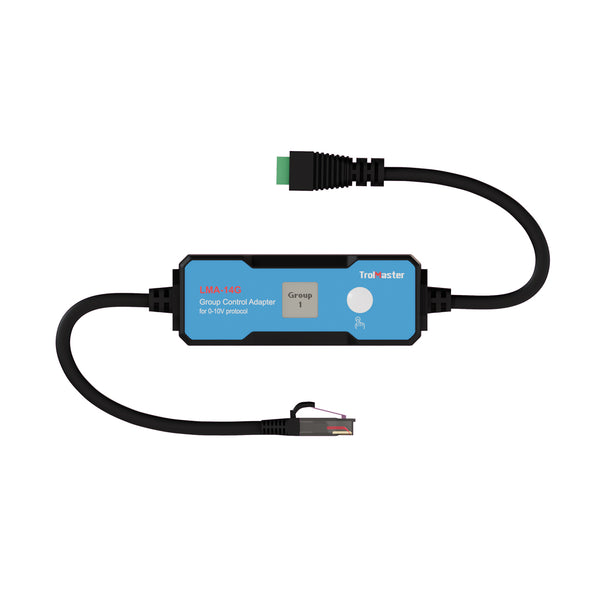

Yes. The TCS-1 features two lighting control channels and works with compatible TrolMaster lighting adapters to automate compatible grow lights.

Can I monitor the Tent-X remotely?

Yes. The Tent-X supports network connectivity for remote monitoring and control through the TrolMaster platform. Network configuration and connectivity requirements apply.
